Canon Lens Filters
Size Chart and list

43mm Canon Lens Filter43mm Canon Lens Filter

This post is all about Canon lens filters. You'll find a list of useful filters and a chart for filter sizes for your Canon lenses, as well as how to use and remove Canon lens filters.

Canon makes lens filters, but so do a hundred other companies. Filters, are just like a few of the other Canon accessories where it make sense to get one of the alternatives instead of the Canon-made filters. It will save you money.

CANON EF LENS FILTER SIZE CHART

FILTER
SIZE
CANON LENS APERTURE
52mm 40mm f/2.8
52mm 50mm f/1.8
52mm 55-200mm II f/4.5-5.6
58mm 24mm f/2.8
58mm 28-105mm f/3.5-4.5
58mm 50mm f/1.4
58mm 85mm f/1.8
58mm 100mm Macro f/2.8
58mm 70-210mm f/4.0
58mm 75-300mm f/4.0-5.6
67mm 35mm f/2.0
67mm 24-85mm f/3.5-4.5
67mm 100mm IS USM Macro f/2.8
67mm 70-200mm f/4.0
67mm 70-300mm f/4.0-5.6
77mm 24mm f/1.4
77mm 16-35mm f/4.0
77mm 17-40mm f/4.0
77mm 28-70mm f/2.8
77mm 24-105mm f/4.0
77mm 70-200mm f/2.8
77mm 28-300mm f/3.5-5.6
77mm 300mm f/4.0
77mm 100-400mm f/4.5-5.6
82mm 16-35mm III f/2.8L
82mm 24-70mm II f/2.8


CANON EF-S LENS FILTER SIZE CHART

FILTER
SIZE
CANON LENS APERTURE
52mm EF-S 24mm f/2.8
52mm EF-S 35mm f/2.8
52mm EF-S 60mm Macro f/1.8
58mm EF-S 18-55mm f/3.5-5.6
52mm EF-S 55-250mm f/4.0-5.6
67mm EF-S 10-18mm f/4.5-5.6
72mm EF-S 15-85mm f/3.5-5.6
72mm EF-S 18-135mm f/4.5-5.6
72mm EF-S 18-200mm f/3.5-5.6
77mm EF-S 17-55mm IS USM f/2.8


Why Buy a Filter For Your Canon Lens?

Fingerprint Smudge on FilterFingerprint is on filter.
Lens is protected.

There are 2 primary reasons for using a filter on your Canon lens.

PROTECTION. The single most important benefit of using a filter on your lens is protection. Clear glass, haze, and UV filters are all used to protect your lens from damage, smudges, scratches, water, dust, and dirt.

It's a lot easier to clean or replace a lens filter for your Canon than it is to repair or have to replace your lens.

LIGHT CONTROL. Lens filters do what their names says. They filter. They filter or modify the light is some specific way to achieve a specific effect. There are many types of filters, but there are just a few that make up the large majority of the ones that photographers use.



filters for creativity

Lens filters open up a new avenue for you to travel down when it comes to digital photography. Although you can edit your digital file after capture in an infinite number of ways, there are several effects that can't be achieve post capture.

ND filter for long exposureUse a neutral density filter for super long exposures in daylight.

The two filters that I use for creative purposes are polarizers and neutral density filters. Polarizing filters reduce or eliminate glare in both small and large areas of photographs. Neutral density filters give you the ability to use very long exposure times to create special effects.

with without polarizing lens filter

Back in the film days, color correction filters were a necessity when shooting color film under different lighting conditions like fluorescent, tungsten, daylight.  Now it's easy to set you camera for any specific lighting type OR adjust color post capture with software.

Split-Graduated ND filters have become less popular with landscape photographers now that HDR (high dynamic range) photography has become so easy to implement. It's also now easy to add graduated filters in a variety of ways, even multiple items with software.

Macro Photography lens filters were very popular for doing close-up photography back in the days of film photography. Technology improvements in lens design has made the need for screw-on close up filters less desirable.

Lens Filter Basics on Ebay


How Lens Filters Affect Exposure

Diagram of how Canon camera filters workFilters reduce the amount of light that gets to the camera sensor.

All digital cameras have auto-exposure, so you won't have to manually adjust your camera to compensate for the change in exposure. Even the clearest looking lens filters will reduce at least some of the light that makes it to your camera's sensor.

A filter, by definition is an optical device that "filters" some of the light from passing through it.

With that said, it's also important to note that with the clear, UV filters, that's it's such a small reduction in light that you really won't be able to notice a difference in exposure.


4 most Common Canon Lens Filter Sizes

    There are several common sizes for filters that will fit your Canon lenses,
  • 52mm-Used on the smaller prime lenses like the 50mm f/1.8 and the 28mm f/2.8
  • 58mm-The all-time biggest seller the 18-55 "kit" lens and my 85mm f/1.8 prime lens
  • 72mm-Common on some of the prime lenses like the 24mm f/1.4, the 85mm f/1.2, and a few mid-range zooms.
  • 77mm-fits the majority of "L" lenses like my 24-70 F/2.8, 24-105mm f/4.0, 70-200 f/2.8,  100-400mm F/45.5-5.6, and 400mm f/5.6.


3 best filters you can use on your canon lenses

You're probably wondering what are the best filters to get and what they will do for you. There are 3 filters you need to consider at this point in your photography. The first is mandatory and the other two are great to use to improve your photography.

1. PROTECTION. By far, the most important filter you need to use is a UV filter or clear glass filter to protect your Canon lens. These filters do not affect exposure at all and are the single most effective way to protect your lens. UV or "Haze" filters will improve your photos under hazy shooting conditions.

2. POLARIZING FILTER. Polarizing filters have two main functions. They will reduce or eliminate reflections within your scene and they will add saturations, particularly noticeable in the blue sky.

3. NEUTRAL DENSITY. The most common use of neutral density (ND) filters is to be able to take really long exposures under bright conditions. Here's a detailed article on ND Filters.


tips on removing your canon lens filter

lens filter wrenchMy Best Friend
A Lens Filter Wrench

There are several tricks you should know about if you want to learn how to remove a Canon lens filter. By far, the best tool to use is a lens filter wrench.

It's the only tool that will put equal pull equally distributed around the perimeter of the filter.

Here are a few more methods of removing your stuck lens filter off your Canon lens. I would never try several of these!

  1. Firmly press the end of your lens against a rubber mat, then turn.
  2. You can tap the lens filter gently multiple times around the entire filter's perimeter on a hard surface to break it free.
  3. Place your Canon lens inside a freezer-Ain't Happening!
  4. You can use a rubber band to improve your grip of the filter.
  5. Place in a ziplock bag and break the filter glass, then use pliers.-No Way!

recommended Lens Filter Accessories

FILTER WRENCHES. Lens filter wrenches are essential to keep with you on a photo shoot that involves using a filter other than your UV filter.  A stuck-on filter can literally ruin your photography session. It happened to me once out in the field during a landscape shoot and it was very frustrating.

LENS CLEANER. A lens cloth or lens cleaning tissue/lens cleaning solution combination is also vital to have on hand. Smudges on your lens filter can affect sharpness, clarity, and sometimes even color balance of your photographs. I use MagicFiber.


Advice on Buying Filters

Here are the 3 most important tips to remember when it comes to buying a filter for your Canon lens.

  1. Multi-coated is the ONLY way to go when buying a filter. If you use uncoated lens filters on your Canon, your image quality will suffer.
  2. Don't get fooled by super cheap prices. You get what you pay for and buying a bargain lens filter could result in big disappointment for you
  3. Only buy filters that give you a benefit that you can't get later by using software. Graduated filters and color filters are a thing of the past now that you can adjust color and make creative edits very easily with software afterwards.

With software you can try many different adjustments from the same RAW image file and have a blast getting creative.

where to buy Canon Lens Filters

The last 4 lens filters I bought were from Amazon and B+HPhoto in New York City. I also purchase my Canon gear from Adorama. You can buy your Canon filters from any source you trust where you can get a good price.

Please consider using one of the vendor below. I appreciate your patronage.

As an Amazon affiliate Canon Camera Geek receives a small commission from qualifying purchases, at NO added cost to you.

By using certain filters on your camera you can both protect your lens and improve the results you get with your photography.


Keep shooting your Canon!

Author Bruce Lovelace
Bruce Lovelace Signature

Bruce Lovelace is the publisher of Canon Camera Geek. Read more about him on the About Page. He also publishes how to articles and camera gear reviews at the Photography Tips website.

View some of Bruce's photos on Instagram  and Flickr  Join the Tribe: YouTube. Visit the Canon Geek FaceBook Group. Bruce runs photo workshops and provides 1 on 1 digital photography coaching.

You might like these

You might also like:


Search for articles on this Site:


Multiple color lens filter kits

Multi-color lens filter kits like this look great but have just a few practical ways to use.

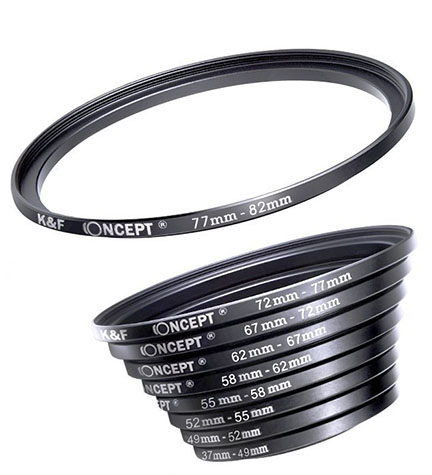

Canon lens filter adaptersCanon lens filter adapters

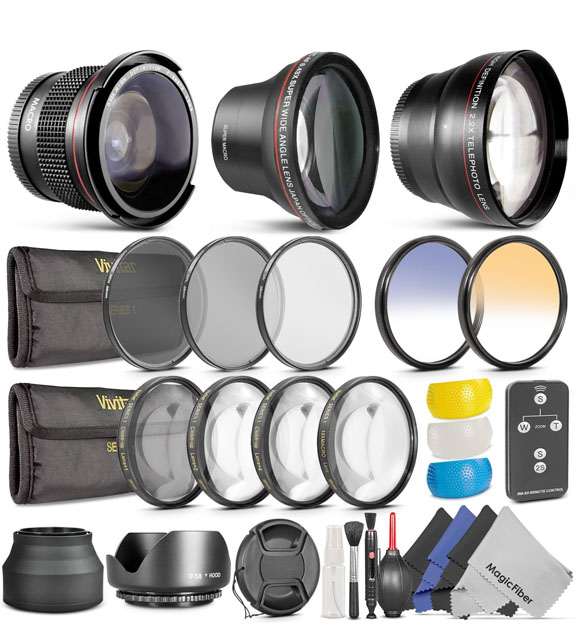

Complete 58mm Lens and Filter Kit For Canon RebelComplete Lens/Filter Kit
