New Canon 400mm Lens

New Canon 400mm f/4.0 Lens

The announcement of a new canon 400mm lens at Photokina 2014 was not a huge surprise to Canon camera fans.

Rumors had been circulating for quite some time.

The new lens is the EF 400mm DO IS II USM which is the upgrade from the original EF 400mm DO IS USM.

The DO stands for diffractive optical, which essentially means great quality combined with small and light.  Notice it has the green colored ring on the barrel and it is more affordable than the "L" Canon lenses.

It is definitely a beauty to look at, with its numerous switches and buttons:

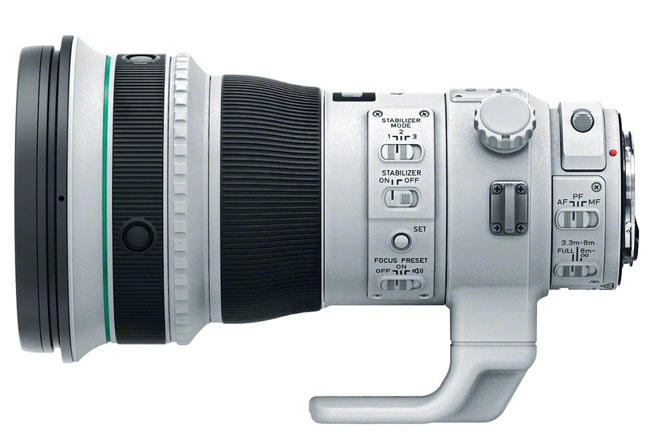

Canon EF 400mm f/4 DO IS II USM Lens

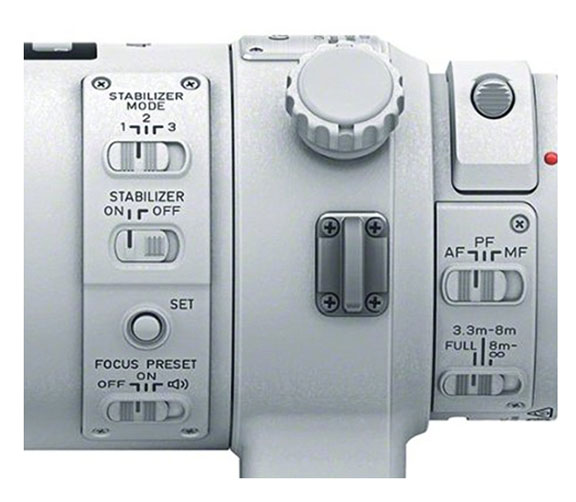

The close-up photo below show the 3-position stabilizer mode selector, the IS on-off switch, the focus preset set button, the focus preset on-off sound selector, the 3-position focus selector and minimum auto-focus distance selector.

The sophisticated features of the new Canon EF 400mm DO IS II USM require a bit of study to fully understand how and when to use its various features.

Close-up of Buttons and Controls on New Canon EF 400 Lens

The EF 400mm f/4 DO IS II USM is being marketed as a “portable super telephoto lens,” The chief design goal with this Canon lens was keeping it as light as possible.

Compared to the 400mm f/2.8L II, this second version of the 400mm f/4 feels really light in your hands as it weighs about only half as much. It claims up to four stops of image stabilization because of  Canon’s OIS technology.

The lens features the newly engineered technology of gap-less dual-layered diffractive optical (DO) elements. That helps achieve optical performance while keeping the same size and weight of the earlier version of this lens and have the optical improvements to set it apart from the older 400mm f/4.

Read consumer reviews of the Canon 400mm lens here.

The 5 Best Features of the 400mm DO IS II

  1. Relatively lightweight for a 400mm super telephoto - good for sports and wildlife.
  2. Three image stabilization modes:  panning, standard, and exposure only
  3. AF-Stop buttons to stop auto focus at any time and focus pre-sets for quick changes.
  4. Power Focus mode for smooth focus shift for video and full-time manual focus while in auto-focus mode.
  5. Relatively affordable compared to 400mm f/2.8 Lenses.

Here is a video to give you some more information on the new Canon 400mm lens:

Price Comparison of Canon 400mm Lenses

Unlike the much more affordable Canon 400 f/5/6 lens that I use, this version is FULLY compatible with the 1.4x and 2.0X Lens extenders.

These prices are rounded off and change over time, but you can make your own personal judgement based on the comparisons.

400mm f/4


400mm f/5.6


400 mm f/2.8


100-400mm f/4.5-5.6


I own the 400mm f/5.6, which is the slowest at f5/6, but it's the lightest to carry, it was the most affordable for me, and it is really sharp wide open at f/5.6.

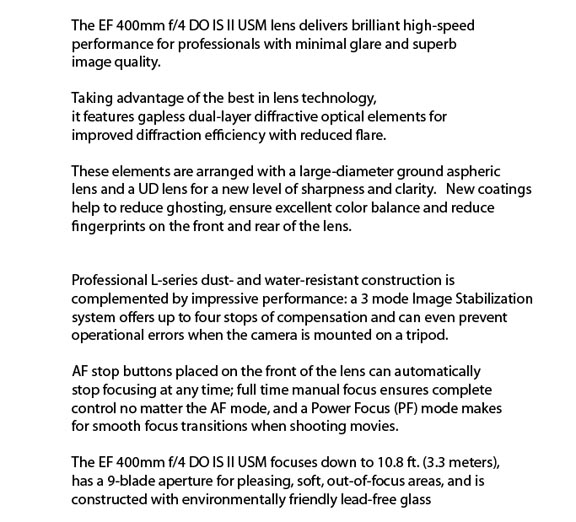

Canon's Own Description of the New 400mm Lens:

Canon's description of the new 400mm f/4 lens

The New Canon 400mm Lens Quick Specs

  • Lens construction is 18 elements in 12 groups
  • Inner focusing system with a USM, ultrasonic motor.
  • Filter is 52mm, drop in type.
  • size is 5.04 inches x 9.10 inches
  • Weight is 4.6 pounds.
  • Minimum focus distance is 10.83 feet.

My final comments on the new canon 400mm lens.   Some photographers rave about the importance of the extra f-stop for getting great bokeh.

You still get great bokeh at f/4.  I've said this before and it's true at the 200mm level, when comparing the Canon 20-200mm f/2/8 vs the Canon 70-200mm f/4.

At 400mm, you have very shallow depth of field and it falls off quickly with this much magnification. The only really advantage of the f/2.8 over the f/4 is in low light situations.

If you have a recently made Canon, you've got exceptionally good performance at higher ISO settings,making that need of one extra stop of "fastness" less important.

At the time of this writing, you can't yet get your hands on one, or read the reviews yet, but you can get the thoughts of consumers who have used various Canon 400mm lenses here:

Reviews on Amazon by photographers who have purchased and used Canon 400mm lenses

The new EF 400mm lens is an advanced Canon camera accessory for those discerning digital photographers who want to use state of the art camera gear and who can afford serious photography equipment.

Most importantly, keep your passion alive for enjoying photography.  Don't get too bogged down with number comparisons (except price perhaps).

Have a blast!


Return to Canon Camera Reviews Home Page

Go to Best Lenses Page

Search for articles on this Site:

This is a business website for me and this page may contain affiliate links that help me pay for this site. Please review the affiliate statement at the very bottom of this page before you buy any product that I recommend.

Sign up for a monthly update

Enter Your E-mail Address
Enter Your First Name

Don't worry — your e-mail address is totally secure.
I promise to use it only to send you Canon Geek Newsletter.


Cheaper Alternative to the Canon 400mm

Canon 400mm f/5.6

Canon 70-200 f/4

Best Canon Zoom Lens

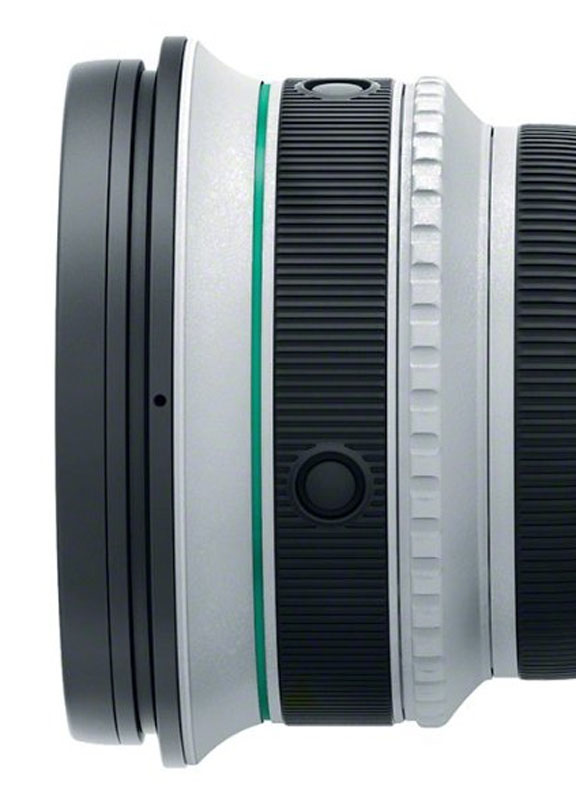

Close-up of Buttons on Barrel of EF 400 Lens

Click to enlarge this photo showing the pre-focus buttons.

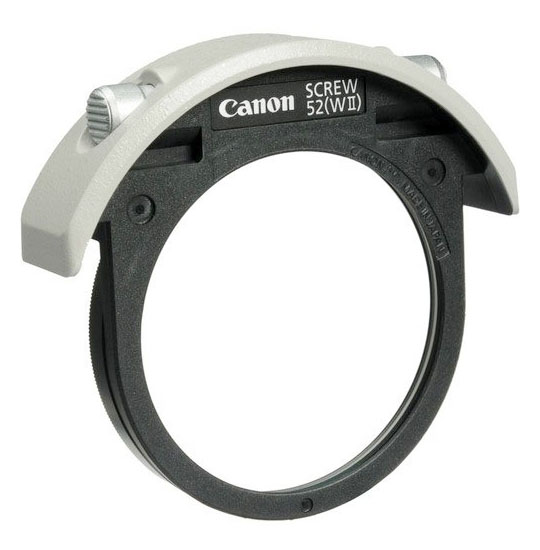

Drop-in 52 filter for Canon EF 400 lens
