G1x Mark II LCD Screen

Canon Powershot G1X Mark II LCD screenThe G1X Mark II's double hinged LCD screen

The Canon Powershot G1X Mark II LCD screen was designed with a double hinge.  This gives you the ability to shoot from a high or low perspective without having to stand on a ladder or lie down on the ground.

At first I was disappointed that it didn't swivel sideways like the G1X original's LCD screen pictured below. After a little thought, I realized that I never really used that feature on my Canon G11 which has the same type of articulating LCD screen as the G1X.


G1X Articulating LCD ScreenG1X Articulating LCD Screen

Both of these screens are better than using the optical viewfinder that Canon jammed into the original G1X.  That viewfinder only shows 80% of your image.

That optical viewfinder on the G1X is undersized and gives you no data like shutter speed, aperture, or ISO settings.


G1X Mark II LCD Screen Photos

The LCD screen flips up 180 degrees for taking those ubiquitous selfies that have permeated our culture.  This is actually a better setup than shooting a self portrait with the LCD off to the side.

Having the screen close to and directly above the camera makes it easier to compose and look into the lens.

Tilting LCD screen on the Canon Powershot G1X Mark II LCD screenThe tilting screen helps for taking selfie photos

Selfie portraits have become such an accepted thing to do that the desire to capture self-portraits has been a driving force in camera lcd design.

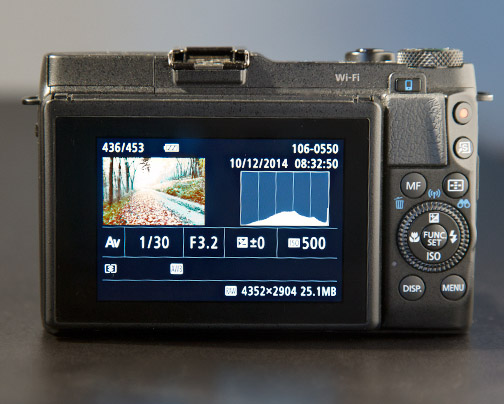

G1X Mark II histogramG1X Mark II histogram and settings on LCD screen

This is probably the way I use the screen more than any other. I am big on using histograms to monitor and adjust the exposure and I always like to know the four settings shown above, shutter speed, f-stop, exposure compensation, and ISO.

Occasionally I'll also use the zooming in playback feature to check for focus, but I still find that LCD screens are not as good as your full-sized computer screen to check out the very fine focus of an image.


Canon G1X Mark II LCD Screen Specs

  • Screen size is 3.0 Inch
  • Screen Dots - 1,040,000
  • Tilting (rotates on a horizontal axis)


  • RGB Purecolor II
  • Electronic viewfinder - optional accessory
  • Touch Screen Enabled for menu navigation, camera settings, and playback


Do you have further questions about replacing your G1X Mark II touch screen. See the FAQ section below.

Canon G1X Makr II LCD Screen Replacement

Can I replace The LCD Screen On my G1X Mark II?

For most people, no. It is a complex "Level 4 or 5 out of 10" repair because of the camera's compact design and the delicate ribbon cables involved. However, if you have patience and the right tools, it is a viable DIY project that can save you hundreds of dollars

How much work is involved when replacing the LCD screen on a Canon G1X Mark II?

Answer You will need to remove over a dozen microscopic screws of varying lengths. Mixing these up can permanently damage the camera's internal threads or puncture a component.

How much does it cost to repair a broken G1X Mark II LCD screen?

Currently a replacement LCD screen for a G1X Mark II costs $50-$65 dollars. If you pay a professional repair center it will cost you several hundred dollars.

How is the LCD screen attached to the G1X Mark II camera?

The screen is connected via ultra-thin "flex" cables. These are notorious for tearing if you pull too hard or try to force them into their ZIF (Zero Insertion Force) connectors.

What special tools are needed to replace a Powershot G1X Mark II LCD screen?

Use JIS (Japanese Industrial Standard) screwdrivers rather than standard Phillips. Also, you'll need a  Nylon Spudger, plastic opening tool, anti-static tweezers, and a magnifying lamp

In the last several years, consumers have clearly let the camera and cell phone manufacturers know that they like bigger LCD screens.  The 3.0 inch is pretty much the standard size for compact and DSLR cameras and the G1X Mark II doesn't fall short in that aspect.

Keep shooting your Canon!
