Canon Teleconverter Compatibility

by Robert
(West Bath, Maine)

Extender For Canon

Extender For Canon

"I have a Canon Rebel XT with a 70-300 mm 1:4-5.6 IS USM lens. Is there a Canon teleconverter, either 1.4 or 2x that I can use with this camera/lens combination. I want to get up close and personal with birds at our feeder."


UPDATED ANSWER: Hi Robert,

thanks for asking if a Canon teleconverter will work with your 70-300 f/4.5-5.6 lens and your Canon Rebel. No, it does not fit, according to a call made by Robert to USA.canon. You need to know two things about Canon camera/lens/extender combinations. We'll get to those in a second, but first to answer your question about the tele extender fit.

Canon teleconverters are built as EF lenses. That means they use full sized lens elements and provide a full size image circle-as opposed to Canon EF-S lenses. I wrote a fully detailed article on this that I think you will find it very helpful: Ef vs. EF-S.

Teleconverter Compatibility With The 70-300

Although the Canon teleconverters will successfully mount to EF lenses (like the Canon EF 70-200) there will be some loss of sharpness and some additional chromatic aberrations.

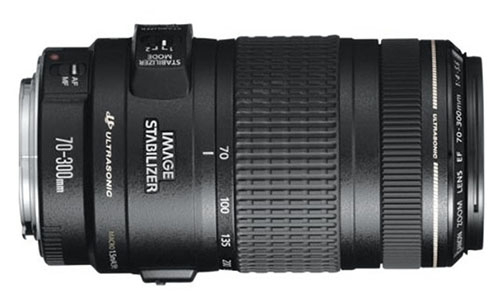

Canon EF 70-300mm f/4.5-5.6


This loss of image quality isn't necessarily significant enough for some Canon shooters to be a deal breaker, but you should be aware of it. It is definitely a subjective thing and you have to make a choice based on your own preferences.

I did my own geeky test of a 1.4X teleconverter II couple up with a 70-200 f/2.8 and you'll likely find this an interesting read as well: Teleconverter Sharpness Comparison.

I did my test using a high resolution 32 megapixel Canon 90D. With the 8 megapixel sensor of the Rebel XT you may not notice the change in image quality. You'd really have to test it and do your own side by side comparison. Also realize that there are 3 different versions of the 1.4x and 2.0x extenders, each later one having significant performance improvements.

Teleconverter Compatibility With The Rebel XT

Like all the Canon Rebels, the XT is an APS-C or "crop" camera. It will accept both EF and the smaller EF-S lenses. With the 1.6x crop factor of the Rebel, you'll get the same angle of view as if you were using a 112-480mm lens.

If you could add in a teleconverter with a magnification of 1.4, your lens will behave as if you have a 157-672mm lens on your camera. That's a SERIOUSLY POWERFUL amount of telephoto magnification. That would enable you to get very up close and personal for photographing birds.

Additionally, you lose 1 stop (or half of the light) with a 1.4x teleconverter and lose 2 stops (3/4 of the light) with a 2.0x teleconverter. Shooting in good light will be even more important and you may have to set your XT to a higher ISO setting to compensate for the reduced speed of your lens.

Finally, release you're going to lose auto-focusing capabilities as well. Although you have compatibility with the 70-300mm, your Rebel, and either the 1.4x or 2.0x canon teleconverters, you'll be focusing manually. With a decent tripod and shooting your bird feeder at a fixed distance, that shouldn't be a big issue either.

Feel free to comment back about what you decide to do. It will benefit all the readers of the Canon Geek blog.


I hope this helps,
Bruce

p.s. I may be traveling along Rt. 1 through Bath on my way to a photo shoot in Acadia very soon.

p.p.s Some lenses will not accept teleconverters because of the protrusion on the teleconverters coming into contact with the lens elements on the camera end. This is particularly true with NON-telephoto focal length lenses.








Comments for Canon Teleconverter Compatibility

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
Tamron converter with no protruding elements
by: Anonymous

I have an older Tamron 1.4X C-AF1 MC4 teleconverter marked TAMRON-F that does not have protruding elements on the front end. It works with any Canon full frame lens or any non-Canon full or partial frame lens on any Canon AF camera. I bought it for my Canon 35mm camera and it still works on all Canon digital models. The only thing you can't do is put a Canon EF-S lens on it because Canon EF-S lenses stick out in the back and the Tamron converter is not designed to accept that protrusion. Non-Canon lenses will fit because they do not have that protrusion since they were also designed to fit Nikon cameras which never were designed to accept such a protrusion. Canon did it to save money on glass. Nikon & Pentax never did it. This was a dis-service to Canon owners since it prevents APS-C lenses being used on full frame cameras. Nikon never did it so they were never restricted in that area.

Newer off-brand teleconverters from Tamron and others stick out in the front so can only be used with telephoto lenses that can accommodate the front bulging elements of the converter. Mine doesn't stick out in the front or back and it is sharp.

The only converters that accept Canon EF-S lenses are off-brand converters that only have 3 elements and only work with Canon lenses because they have internal electronics to convert the apertures for exit data. My converter has no internal electronics. Whatever comes into the front of the converter is sent right through to the rear without any modifications to the exif. Thus if the lens is set to F8 it will be recorded as taken at f8, not the equivalent f11 with the converter. A small price to pay for full compatibility with so many off-brand APS-C lenses. All my tele zooms are either full frame Canon lenses or partial frame off-brand lenses so they all work with my old converter that was designed before digital cameras were invented with exif date to collect or Canon created their EFS-C design with the protruding elements on the rear of the lenses.

Rating
starstarstarstarstar
Converters and zooms
by: Anonymous

Just to add, I found the loss of quality using both the 1.4x and 2.0x converters with both the 70-200 and 100-400 mk2, made it impossible to get acceptable bird photos.
What has amazed me is the quality of photograph I get with my 1.4x convertor and my 600mm lens.

Rating
starstarstarstarstar
Alternatives
by: Robert

Do you know of any other vendor who might offer a teleconverter without the protuberance? no, It's probably inherent in the design.

Rating
starstarstarstarstar
Canon tech service
by: Anonymousrobert

"I took your advice and called Canon. Took three tries and 20 minutes on hold but finally reached a person. Explained the situation as I did here and got a one word answer, no. This lens, she said is not compatible with any canon teleconverter.

Bummer! Looking at the diagram of the version II of the 70-300mm lens looks like there might be enough space to fit the protrusion from the teleconverter. I know that Covid19 restrictions have drastically adjusted the hours and service level that many companies (including Canon's)

Rating
starstarstarstarstar
Thanks
by: Robert

"Thank you for the detailed info. The canon compatibility lists always seem to omit my telephoto lens leaving me frustrated. I appreciate your hands on guidance. I’ll give you feedback when I make my purchase."

Robert, My concern with compatibility and your 70-300 is that the protrusion on the extender will hit the first lens element on the camera end of the 70-300, as I'm not sure of the clearance and its specific design of the lens elements. Your best bet on a super specific like this is to call Canon USA directly. Just be sure you can return the lens to the seller if I'm wrong.

Click here to add your own comments

Join in and write your own page! It's easy to do. How? Simply click here to return to Ask The Canon Geek.

Canon1.4x Teleconverter With Mirrorless EF Adaptor Compatibility

by John Cornwell
(WV new river)

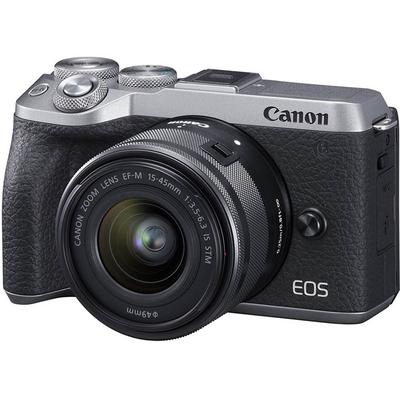

Canon M6 II Mirrorless Camera

Canon M6 II Mirrorless Camera

"Wondering if a 1.4x teleconverter would work using an M 6 mark II mirrorless camera with an ef converter and a 70-200 ef lens."

Hi John,

Although I have no personal experience with combining an EF adapter for Canon M mirrorless and a 70-200mm lens, I believe it will work. Of course, the only way you'll know how well the adapter, the 1.4x tele-converter and the 70-200 lens will work together is to try it.

I've been disappointed with the sharpness that comes along with using a tele-converter in my own experiences, so I am biased against using them, particularly with today's high resolution cameras.

Perhaps one of our fellow readers can comment on this.
Thanks,
Bruce

My Test of The Canon 1.4X Tele-extender.
Canon Mirrorless Comparison.

Click here to post comments

Join in and write your own page! It's easy to do. How? Simply click here to return to Ask The Canon Geek.

2x Telephoto Converter
For Canon EF 75-300MM III

by Tim Kurtz
(Tampa, FL)

Teleconverter and Canon 75-300mm Lens

Teleconverter and Canon 75-300mm Lens

What 2x telephoto converter will work on my canon zoom lens EF 75-300mm 1:4-5.6 III?

Hi Tim!

Thanks for your question about the compatibility of teleconverters with the Canon EF 75-300mm f/4-f/5.6 III lens. There is not teleconverter that will work with your 75-300 lens.

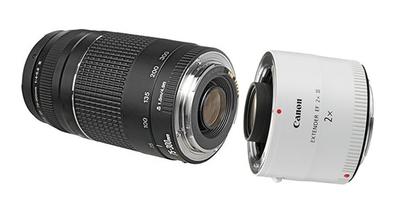

Look at the photo above. Teleconverters have a protruding lens element. The 75-300 lens does not have an indent in the lens barrel that will allow a teleconverter to attach.

The 1.4X and 2X teleconverters are a popular way to get extra magnification when photographing distant subjects, rather than buying a bigger, heavier, more expensive telephoto.

Personally, I'm not a big fan of teleconverters. With the tests I've done, I get better image quality by using a telephoto lens without the teleconverter and then cropping closer with software. See my comparison post on this topic here.

Some folks are happy with the image quality they get with teleconverters and appreciate the simplicity of not having to crop images from their cameras.

Good luck,
Bruce

Comments for 2x Telephoto Converter
For Canon EF 75-300MM III

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
Teleconverters
by: StephenBP

I have a super 100-400 mk2 Len’s but was always terribly disappointed with the performance of the 1.4x and 2x converters. The images were never sharp.
I even sold my 2x converter which is sad because I know use the 1.4x with my 600mm Len’s and it’s pin sharp

Click here to add your own comments

Join in and write your own page! It's easy to do. How? Simply click here to return to Ask The Canon Geek.

Canon 70D, 70-200mm f/2.8 Zoom Lens With 1.4 Teleconverter

by Bob T.
(Chillicothe, Ohio)

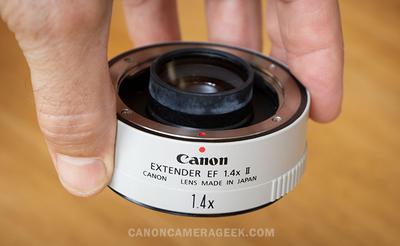

Canon 1.4X Teleconverter

Canon 1.4X Teleconverter

"I am taking a trip to Alaska and will be taking pictures of wildlife (think brown bear). I have a canon 70D and will be using a canon 2.8 70-200 lens with a 1.4 teleconverter. I am an amateur photographer and am not sure as to the best way to compensate for the one stop drop in aperture while using auto focus. Can you help?"

Bob T.

Hi Bob!

Thanks for asking about shooting with a Canon 1.4/x Teleconverter and a Canon 70-200nn f/2.8 lens. You're going to have a blast and I hope you get some great wildlife photos. I've only been to Alaska once, but was fortunate to be able to get a few brown bear photos, as well as moose, eagles, mountain goats etc. with my 400mm f/5.6

You definitely should read the results of the test I did using the Canon 1.4x teleconverter and my copy of the 70-200mm f/2.8: Teleconverter Test. You might want to do do your own test, comparing with and without sharpness of using your copy of the teleconverter with your 70-200mm lens before you take your trip. Results can vary with individual lenses, so the only real way to know is to experiment with your specific lenses.

Teleconverter And 70-200mm Compatibility

The good news is that the EF1.4x extender is fully compatible with your 70D and the EF 70-200mm lens. That means your auto-exposure and autofocusing will work fine. Since the 70-200 lens is a "fast" lens with a nice wide open aperture, the challenges you have with the 1 stop loss of light won't be that tough.

It all depends on the specific situation you're in when photographing the bears and other wildlife what exposure settings you'll use.

Good luck, Bob, and I hope you'll be able to share some of the photos you get with the Canon Camera Geek readers!

Bruce

Compatibility With 70-300mm lens test

Comments for Canon 70D, 70-200mm f/2.8 Zoom Lens With 1.4 Teleconverter

Average Rating starstarstarstarstar

Click here to add your own comments

Rating
starstarstarstarstar
Extenders
by: Stephen B-P

I found that the loss of sharpness with a 1.4x extender and a 70-200 mm was so bad that I gave up using the extender. Likewise with the 2x extender, so much so that I traded it in. This is very sad because I now use the x 1.4 with a 600mm prime lens and get stunning sharpness!!

Click here to add your own comments

Join in and write your own page! It's easy to do. How? Simply click here to return to Ask The Canon Geek.


Author Bruce Lovelace
Bruce Lovelace Signature

Bruce Lovelace is the publisher of Canon Camera Geek. Read more about him on the About Page. He also publishes how to articles and camera gear reviews at the Photography Tips website.

View some of Bruce's photos on Instagram  and Flickr  Join the tribe of followers on YouTube. Bruce also runs photo workshops and provides 1 on 1 digital photography coaching.
